50 'lg tv icin ledストリップバックライト工場50ln/la 50 "row2.1 l1/r1/l2/R2-TYPE 6916l-1241a/1272a/1273a/1276a

$10.60 - $13.80 / セット | 10.0 セット (最小。オーダー)
色を出すこと:
コールドホワイト
タイプ:
LEDはライトを禁止する
配送:
サポート 海輸
レポート不審な活動
概要
詳細を表示
ランプ力:
60 ワット
CRI (Ra>):
70
働く温度(℃):
-50 - 60
働く寿命(時間):
50000
ランプボディ材料:
FR4
認証:
セリウム, FCC, RoHS
原産地:
Guangdong, China
銘柄:
Joyus
モデル番号:
JY-lg50f
適用:
テレビ
光源:
LED
保証(年):
2 年間の
L1:
5 led
R1:
5 led
L2:
5 led
R2:
5 led
1 セット:
12 個のledストリップ
1 行:
約 998 ミリメートル
ビーム角度:
170 度
ミックスライト距離:
OD25
Moq:
10 セット
入力電圧 (v):
DC30V-33V
ランプ電源:
60 ワット
Cri (ra>):
70
使用温度 (℃):
-50 - 60
作業寿命 (時間):
50000
入力電圧(V):
DC30V-33V
供給能力
供給能力:
1000000 Set/Sets per Month
包装 & 出荷
包装
1.peバッグ
2.輸出カートン
ポート
Shenzhen / Hongkong
動画の説明
Specification

We are a real led tv backlight factory, welcome to visit us !

Hot sales 50' lg tv icin led strip backlight factory more details:

1. 1 set has 12 pieces of lg led tv stripe, 4 types of led strip, L1 R1 L2 R2.

2. Totally 6 rows, 3 rows of L1 + R1 and 3 rows of L2 + R2.

3. PCB Material: glass fiber (FR4 PCB)

4. LED Voltage: 3.0-3.3V per smd 2835 led, 30-33V per row.

5. Working Current: 350 mA per row

6. Lens Beam Angle: 170 degree

7. Glue between lens and pcb: epoxy glue, can't use UV glue, ours is best suitable to this, can't fall.

8. Double-side tape on the back of lg led strip light diffuser lens.

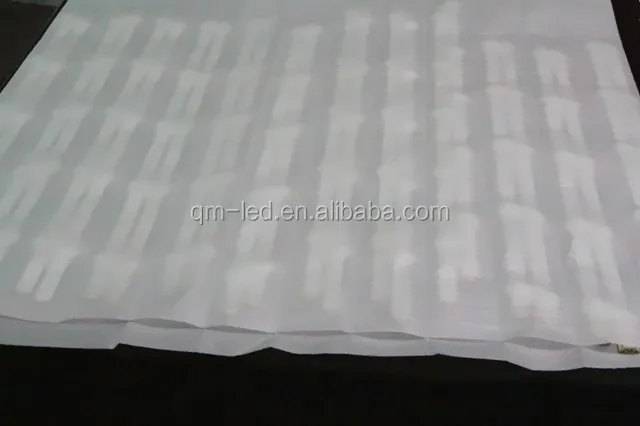

9. Reflective paper/sheeting is included.

10. Connector on one end of backlight led tv lens

11. 32' LG LN and 42' LG LN. 47' LG LN and 49' LG LN models are avaialble.

12. LG LB model with replacing lens is available, 32' 42' 47' 49' LG LB with bigger lens are for choice.

13. Lifespan: 50000 hours

14. Warranty: 2 years

15. Certificate: CE / RoHS / FCC

16. MOQ: 10 sets


17. L1 : 5 leds

       R1: 5 leds

       L2: 5 leds

      R2: 5 leds


18. One row size: 998*12mm


19. 1 set of 50 lg led strip has 60 pcs of leds.


20. 1 set has 60 pcs led tv lens

Detailed Photos

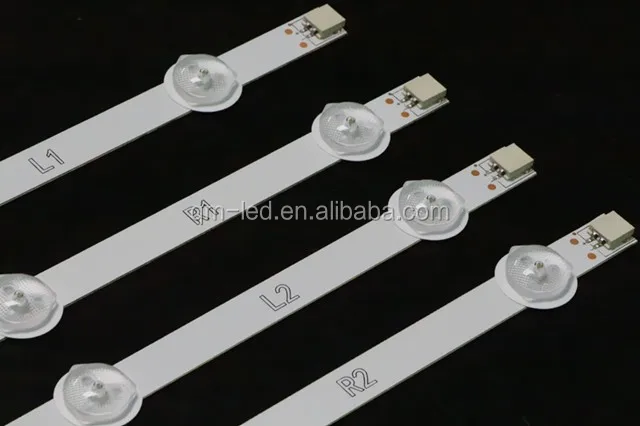

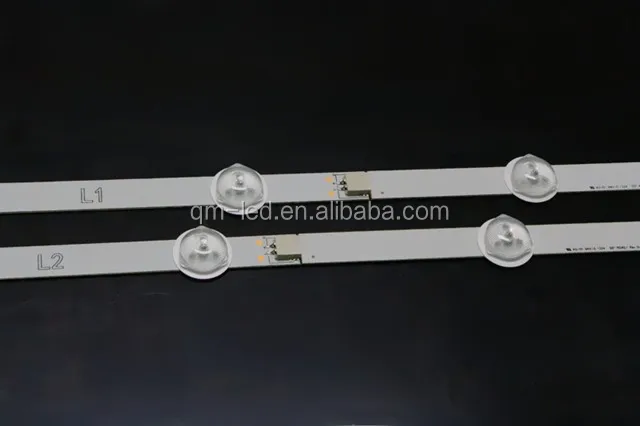

This set of tv için led backlight has 4 models of led strip, L1 R1 L2 R2.

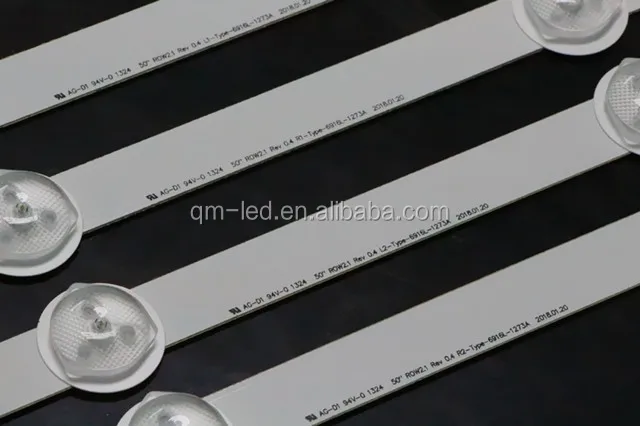

50' some words on the lg led strip FR4 PCB, there is production time.

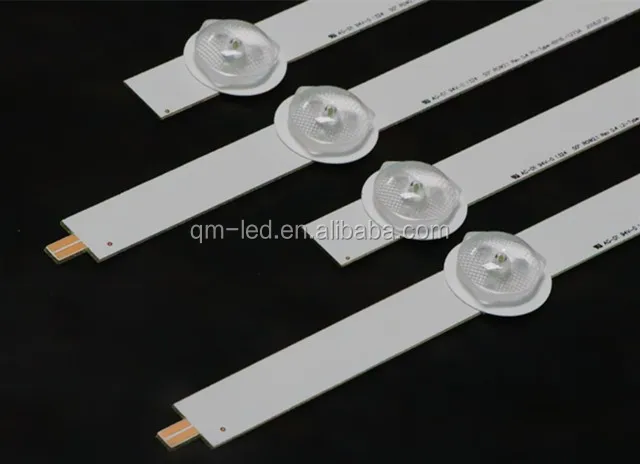

This photos show the end of 4 models of led strip tv backlight.

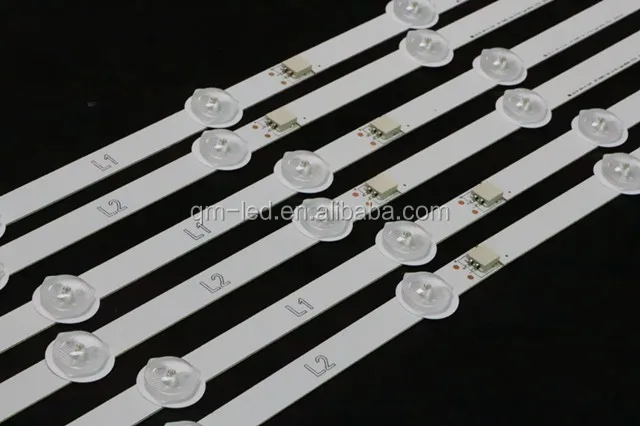

This photo shows the middle connector on the led strip backlight.

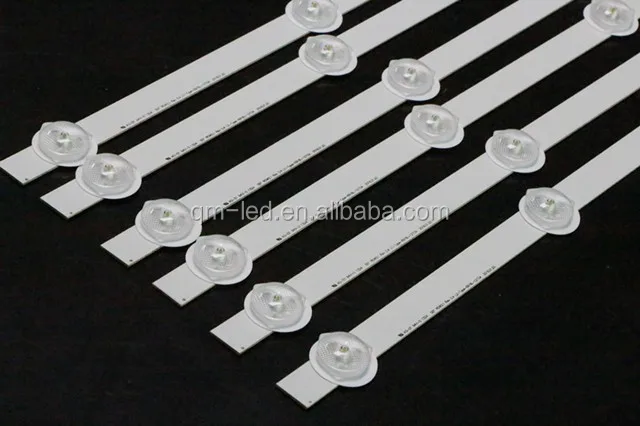

This photo shows the end of led tv backlight, there are 6 rows per set of led backlight tv.

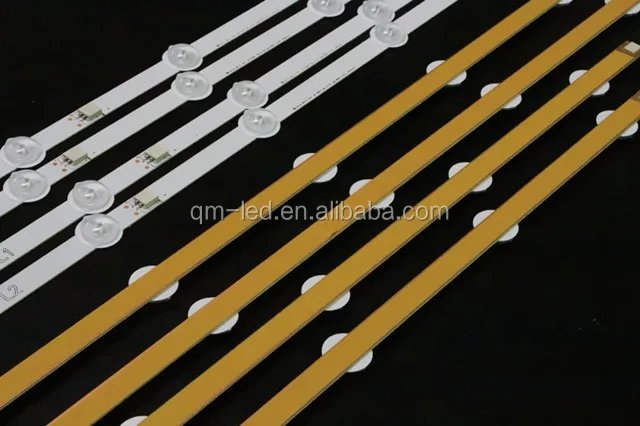

Double-side 3M tape on the back of led strip.

Packing details:

1. 1 set or 2 sets in one bag (save freight cost)

2. 50 sets in one carton

Application

these led bars backlight are for 50' lg tv.

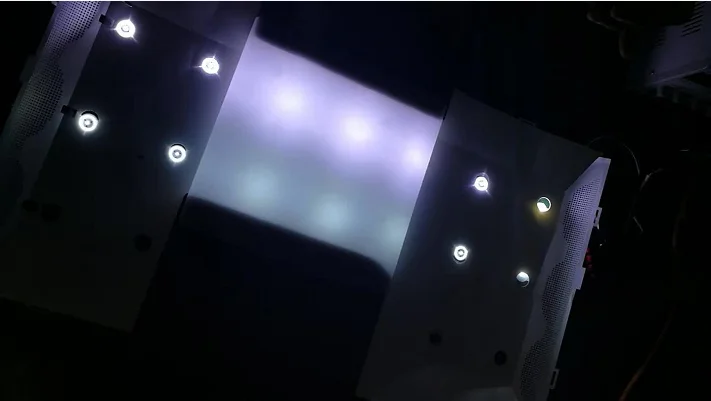

Our customer used our 47' bar led tv backlight, they are super satisfied with the effect, sent us the photo and thumbs-up.

This gave us more power and energy to keep and continue good quality product all the time.

Reputation

It adopts our lg led tv backlight inside, our customer is happy for it.

 Our tv led backlight strip VS other's sample

This customer ever bought very cheap products, he came to our factory, then we compared their samples.

When he saw this result, he was amazing and like our product quality very much, he bought our all stock and keep cooperation relationship with us all the time.

The cheap one weakness: 1. led is not professional.

2. led brightness is low.

3. LED quality is not good, when we touched one led, the whole led strip flashed, and led was very hot, so its lifespan is short.

4. Lens and glue quality is not good, ours is better.

In a word, expensive products has its expensive reason, this business rule is suitable to all products, only in sale and purchase market.

Lost USD15000 as bought cheap tv led backlight

One customer told us before he started to cooperate with us, the price of tv led backlight he bought is half of ours, but the quality is bad after they received the bulk goods, the lens were not fixed well on pcb.

No.1  " LG LN tv led backlights are great, too satisfied", this customer said., and want to test our LG LB series tv led backlight.

No.2  " Your quality is very good", this customer said.

No.3  " 32' lg ln and 42' lg ln are great, later test our LB after buying a TV backboard", this customer said.

After several days, he gave the feedback, our LG LB quality and effect are good.

No.4  " Your led tv backlight strip are working well, very good", this customer said.


100% customers who bought our led tv backlight strip are satisfied with the quality and lighting effect.

Certifications
Company Information

Shenzhen JOYUS Optoelectronics Co., Ltd was found in 2008, located in earliest led production base, Shiyan town, Bao'an District, Shenzhen City.


Pay all attention to led strip light research and development and production.


As one of the white hair in led strip light, our led strips are used in everywhere, like TV LED backlight, indoor and outdoor decoration and illumination, advertising light box, showcase, display case, sign, machines, plant growth, uv led.

Main products: LED hard strip, LED flexible strip, LED board, special design.

JOYUS Strength:
1. Quality is the soul of an enterprise.
2. Support ODM and OEM
3. Fast delivery time
4. Supply after-sales service
5. Refund 100% if there is problem with our product quality.
6. Sign a contract and confidentiality agreement.
7. VIP, VVIP customer lever, give some discount every year.

JOYUS Capacity:
1. 1500 square meters
2. 1 research and development team
3. 1 export sales team, 1 domestic sales tean, 10-50 people
4. 1 after-sales department, 10-20 people
5. 3 production lines
6. 10 machines imported from Japan and Germany

Warm Tips


Prices on the base of exchange rate USD100=RMB623 (Mar.27, 2018)
Welcome to contact us to get lastest price.
Feel feel to send us enquiry at any time.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 20-30 days for order quantity more than 1000 sets.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 5 sets for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.3%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
